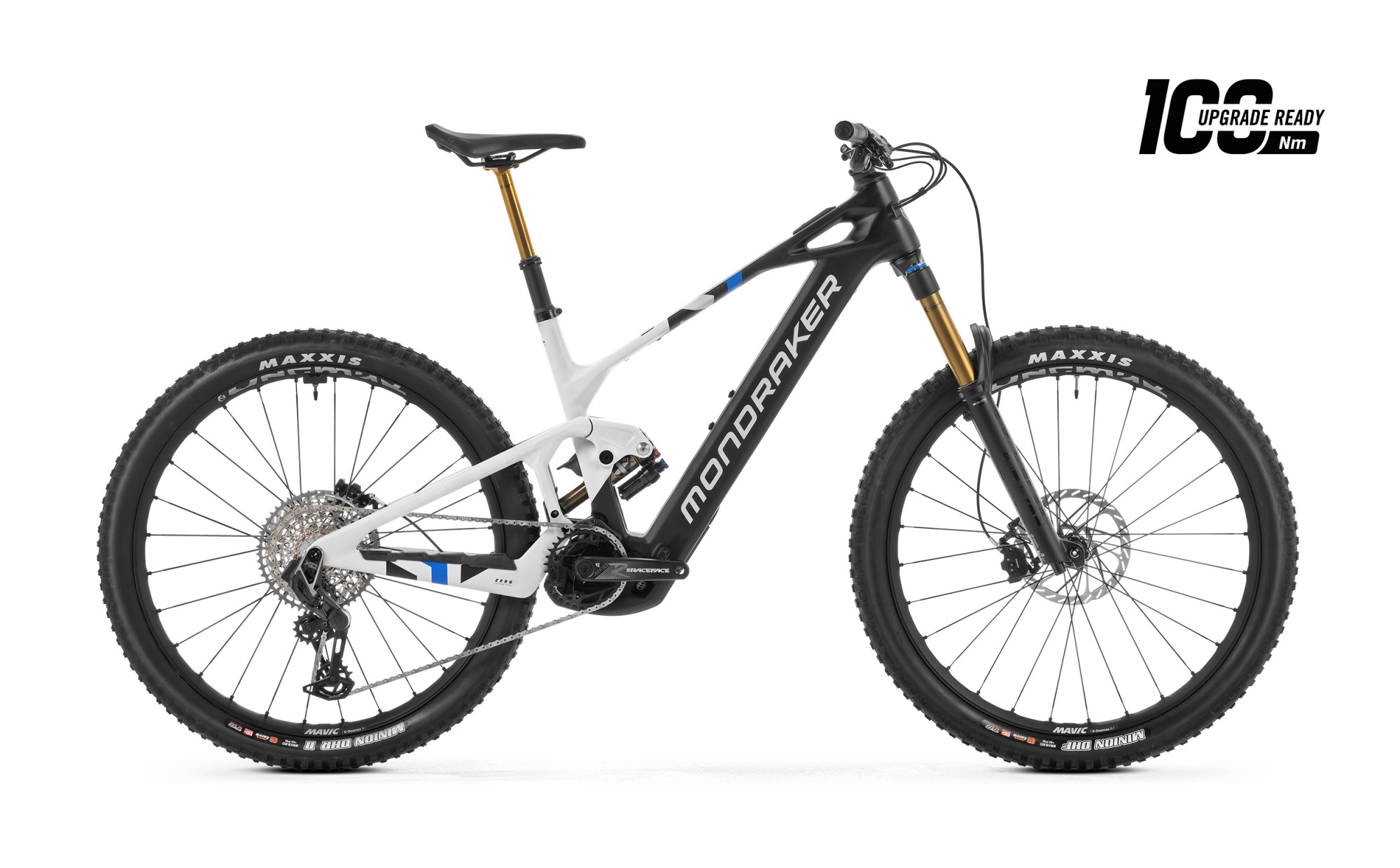

Mondraker Crafty RR S 2025


c

Geometry

  S [STD/LOW] M [STD/LOW] M/L [STD/LOW] L [STD/LOW] XL [STD/LOW]
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 445/441 460/456 480 mm/476 mm 500 mm/496 mm 520 mm/516 mm
Stack 638/641 638/641 647 mm/650 mm 656 mm/659 mm 665 mm/668 mm
Top Tube (actual) 581/582 596/597 618 mm/619 mm 640 mm/641 mm 662 mm/663 mm
Head Angle 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15°
Seat Angle 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65°
Head Tube 131 124 130mm 140mm 150mm
Chainstay 455 mm/456 mm 455 mm/456 mm 455 mm/456 mm 465 mm/466 mm 465 mm/466 mm
Wheelbase 1240 mm/1241 mm 1255 mm/1256 mm 1280 mm/1281 mm 1314 mm/1315 mm 1338 mm/1339 mm
BB Height 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm
Fork Rake / Offset 44mm 44mm 44mm 44mm 44mm
Wheel Size 24 24 26 24 29
Max Post Insertion 180mm 215mm 235mm 255mm 275mm
Data Source Manufacturer Manufacturer Mondraker Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
