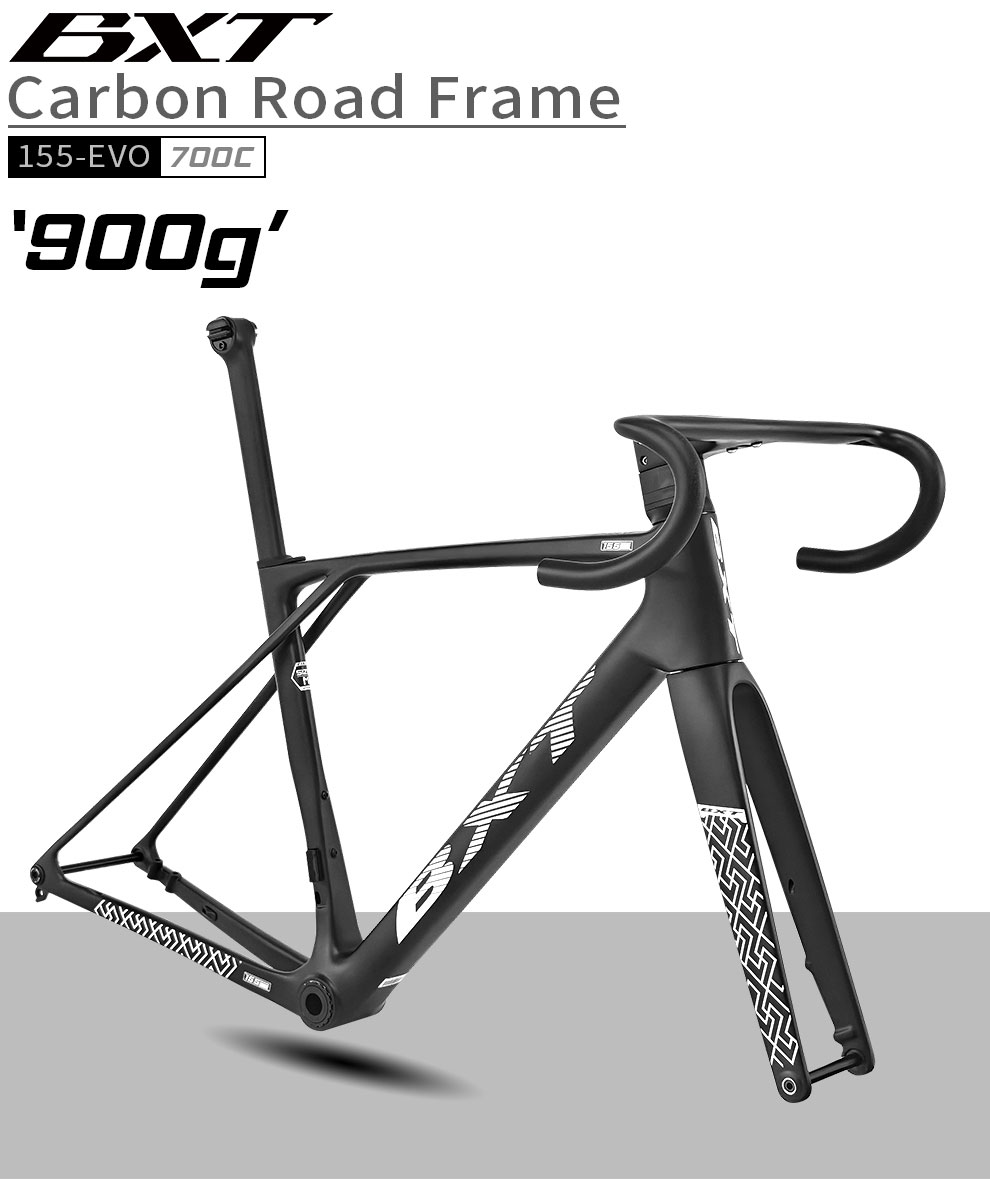

BXT 155 EVO 2025


c

Geometry

  XS S M ML L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 329 304 455 367 465 374
Stack 569 528 548 494 599 568
Top Tube (effective) 565 523 555 567 583 650
Seat Tube C-T 448 506 396 426 589 516
Head Angle 81 83 59 64 76 77
Seat Angle 85 68 68 75 59 87
Head Tube 116 113 134 130 196 208
Chainstay 373 391 333 479 361 451
Wheelbase 1117 941 993 1157 1008 973
Front Centre 667 597 567 586 520 660
BB Drop 70 70 75 79 69 67
BB Type T47 T47 T47 T47 T47 T47
Fork Rake / Offset 40 52 36 38 38 42
Fork Length (A2C) 336 308 334 317 440 366
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

Image showing geometry measurements
