Geometry

  44 49 52
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 396 363 372
Stack 441 552 542
Top Tube (effective) 500 504 553
Seat Tube C-T 491 449 435
Head Angle 76 73 67
Seat Angle 85 90 59
Head Tube 102 112 104
Chainstay 478 399 399
Wheelbase 969 1038 859
Front Centre 547 517 610
Standover 701 857 653
BB Drop 75 65 70
BB Type T47 T47 T47
Fork Rake / Offset 53 42 46
Trail 82 63 47
Fork Length (A2C) 297 357 395
Wheel Size 700C 700C 700C
Tyre Max Width 32C 32C 32C
Data Source Retailer Retailer Retailer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

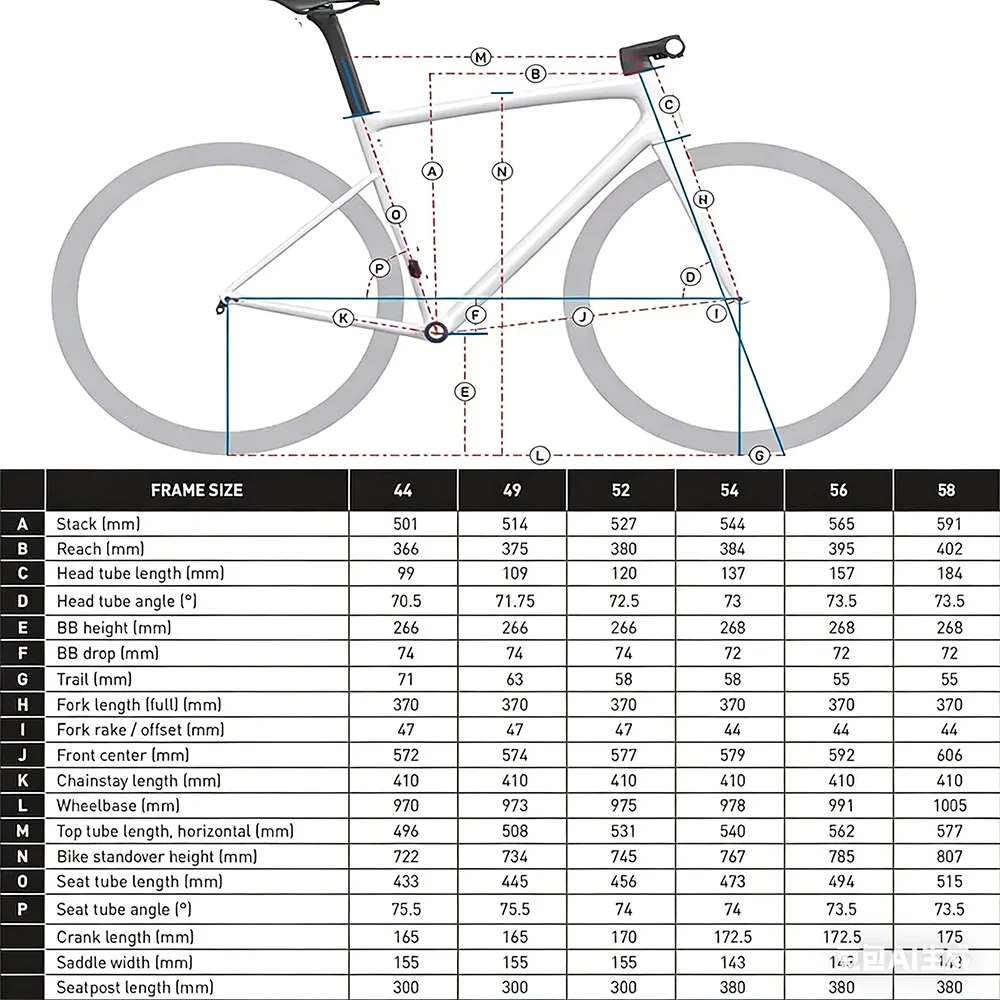

Image showing geometry measurements
