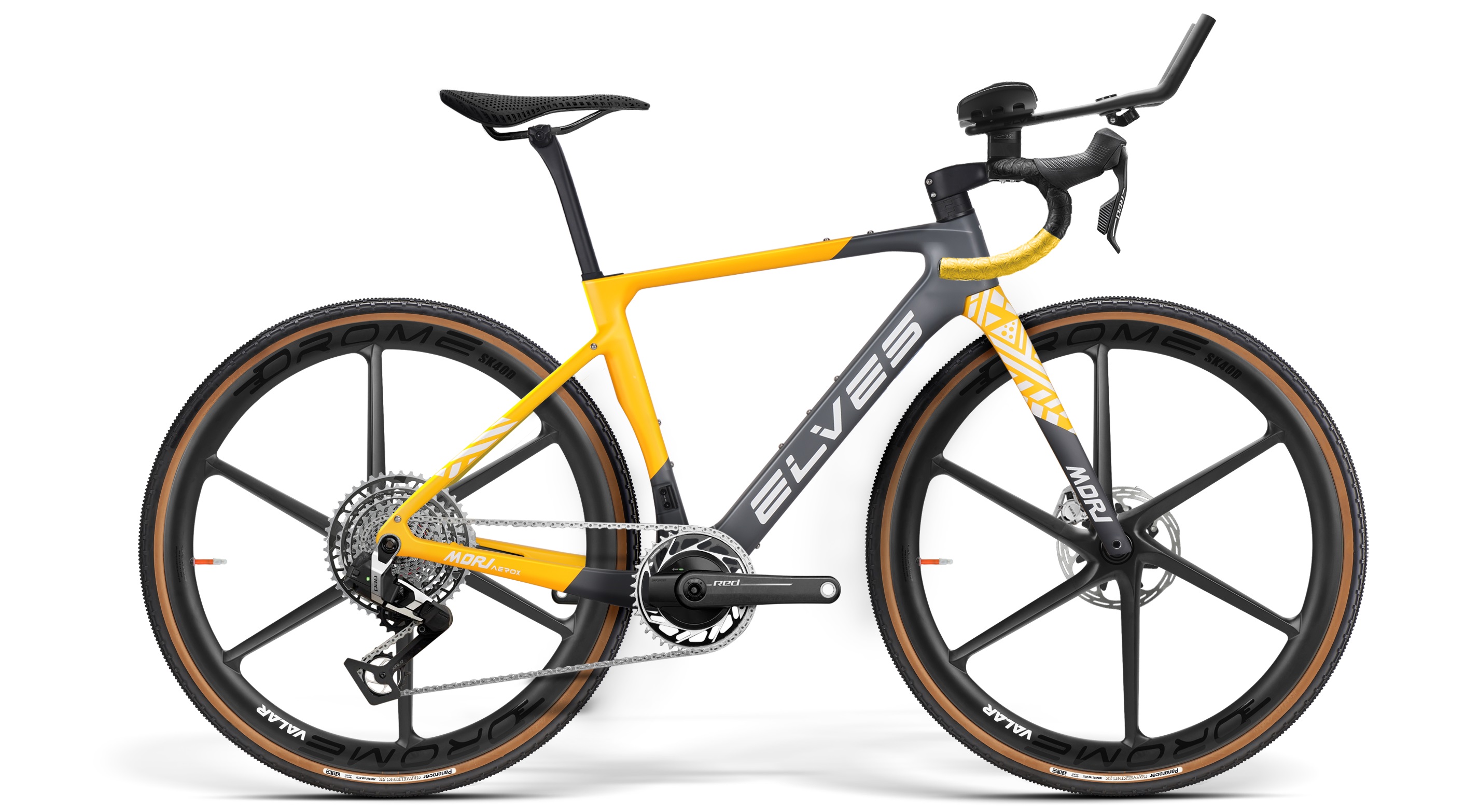

Elves MORI AEROX CARBON AERO GRAVEL DISC 2025


c

Geometry

  46 49 54 56
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 416 439 344 395
Stack 455 453 592 464
Top Tube (effective) 408 558 555 521
Seat Tube C-T 375 468 564 500
Head Angle 58 73 71,3 72
Seat Angle 62 87 73,1 85
Head Tube 89 100 135 149
Chainstay 396 417 356 392
Wheelbase 1110 1076 1144 916
Front Centre 476 682 521 656
BB Drop 79 68 83 74
BB Type T47 T47 t47
Fork Rake / Offset 47 47 51 67
Tyre Max Width 40 41 50 50
Data Source Elves Elves Elves Elves

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
