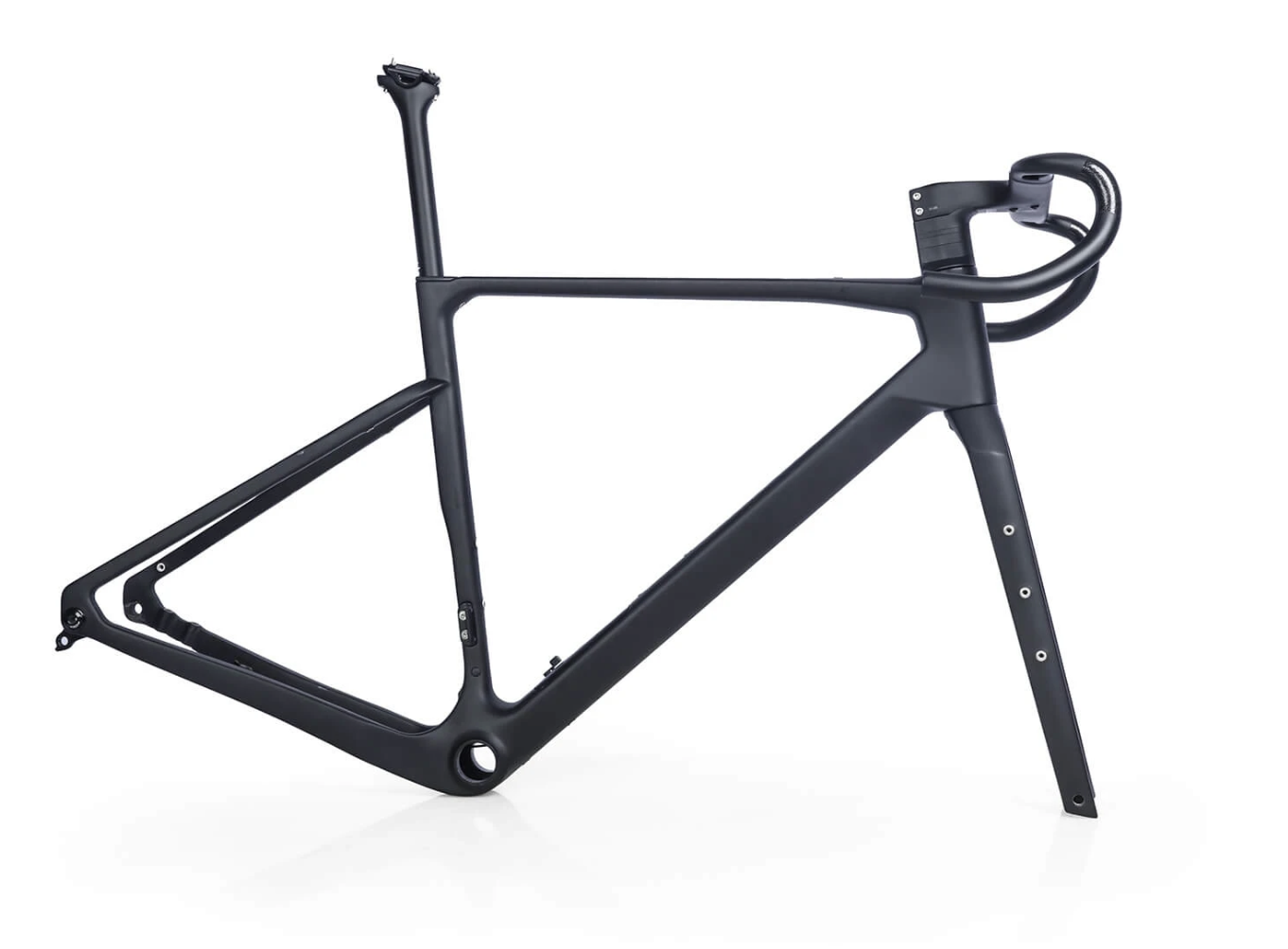

ICAN GRA04 2024
Prove Humanity: Please click here to start.
You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.
Geometry
| Add to Compare |
| Reach |
| Stack |
| Top Tube (effective) |
| Seat Tube C-T |
| Head Angle |
| Seat Angle |
| Head Tube |
| Chainstay |
| Wheelbase |
| Front Centre |
| BB Drop |
| BB Type |
| Fork Rake / Offset |
| Fork Length (A2C) |
| Seatpost Diameter |
| Wheel Size |
| Tyre Max Width |
| Headset |
| Data Source |
| XS(470) | S(500) | M(530) | L(560) | XL(590) | |
|---|---|---|---|---|---|
| Add to Compare | |||||
| Reach | 365 | 403 | 391 | 381 | 408 |
| Stack | 441 | 537 | 579 | 638 | 501 |
| Top Tube (effective) | 492 | 452 | 505 | 593 | 572 |
| Seat Tube C-T | 419 | 531 | 418 | 589 | 473 |
| Head Angle | 75 | 68 | 57 | 70 | 80 |
| Seat Angle | 86 | 67 | 61 | 87 | 63 |
| Head Tube | 100 | 157 | 122 | 137 | 200 |
| Chainstay | 457 | 390 | 494 | 494 | 507 |
| Wheelbase | 1112 | 865 | 876 | 1084 | 1163 |
| Front Centre | 554 | 519 | 583 | 652 | 564 |
| BB Drop | 56 | 61 | 74 | 61 | 73 |
| BB Type | T47 | T47 | T47 | T47 | T47 |
| Fork Rake / Offset | 58 | 42 | 48 | 56 | 54 |
| Fork Length (A2C) | 405 | 450 | |||
| Seatpost Diameter | 30 | 25 | 31 | 27 | 30 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C |
| Tyre Max Width | 50c | 50c | 50c | 50c | 50c |
| Headset | 1-1/2″ | 1-1/2″ | |||
| Data Source | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer |
Select
two sizes then 'Compare'
two sizes then 'Compare'Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
