Geometry

  46 49 51 53 55 57 59 61 63
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 433
Stack 501
Top Tube (effective) 476 435 568 449 449 517 541 666 694
Top Tube (actual) 495 420 515 498 494 478 595 553 484
Seat Tube C-T 558 566 557 458 491 566 644 722 531
Seat Tube C-C 520 535 530 555 642 535 550 520 709
Head Angle 78 84 84 81 74 66 59 60 71
Seat Angle 80 59 71 71 69 76 73 73 67
Head Tube 79 86 85 129 126 165 191 187 204
Chainstay 443 350 351 419 449 428 385 374 447
Wheelbase 759 982 949 1155 1062 993 967 984 1040
BB Height 279 302 239 217 312 291 219 254 218
BB Type BSA BSA BSA BSA BSA BSA BSA BSA BSA
Data Source Forum Post Forum Post Forum Post Forum Post Forum Post Forum Post Forum Post Forum Post Forum Post

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

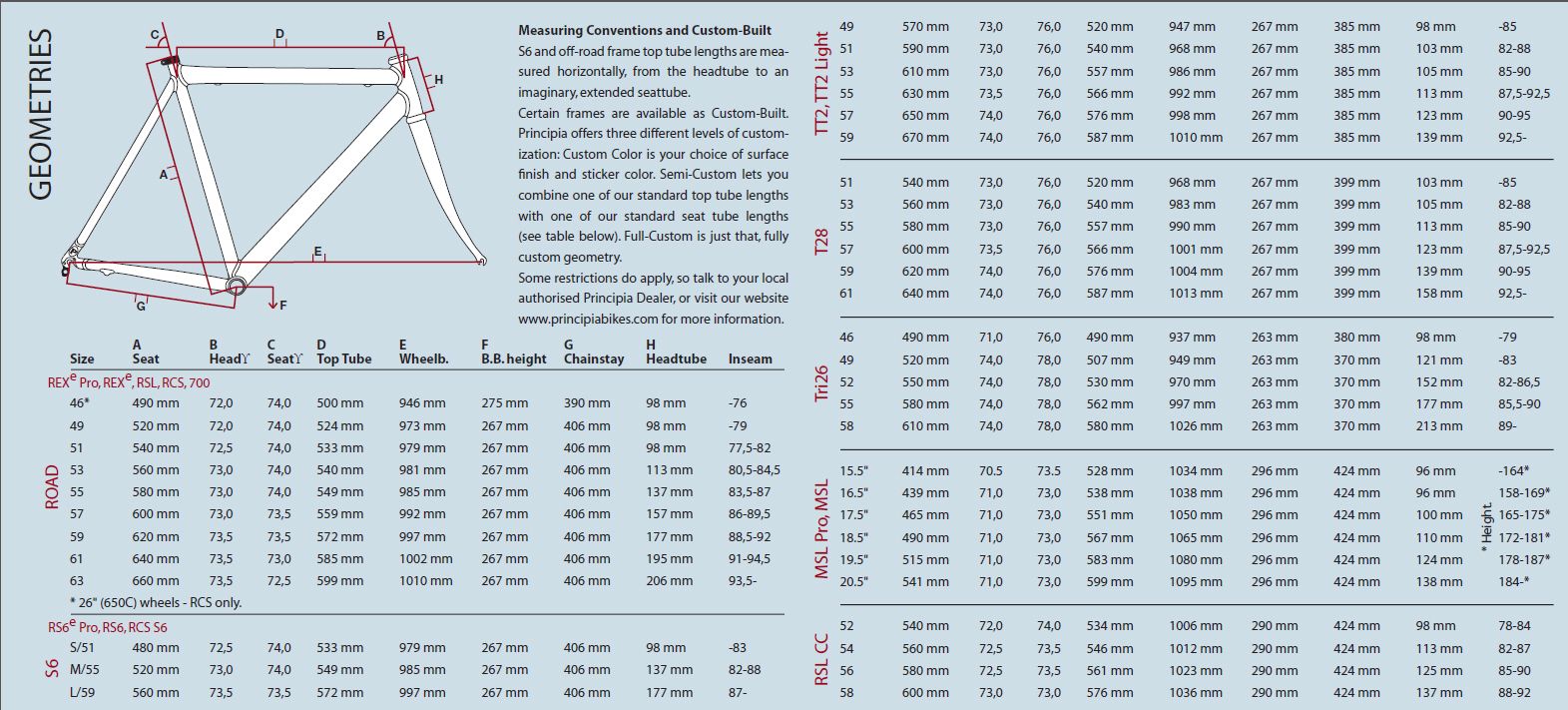

Image showing geometry measurements
