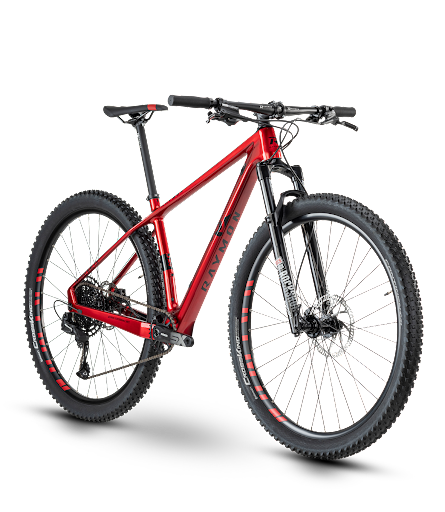

R Raymon HardRay Nine 7.0 2021


c

Geometry

  -56 mm 1064 mm 390 mm 437 mm 90 mm 570 mm 73 70.25 S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Top Tube (effective) 460 536 730 714
Seat Tube C-T 337 390 431 549
Head Angle 83 66 71 62
Seat Angle 64 66 78 69
Head Tube 89 109 104 108
Chainstay 482 485 438 447
Wheelbase 1027 1233 1180 967
BB Drop -51 -45 -65 -46
Data Source R Raymon R Raymon R Raymon R Raymon

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

Image showing geometry measurements
