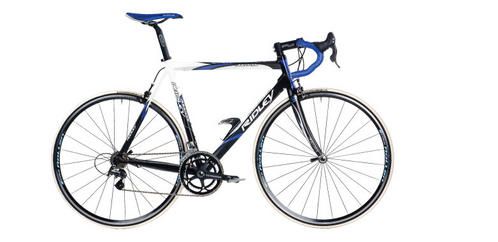

Ridley Aedon 2008


c

Geometry

  48 50 52 54 53 56 58 55 60 62 57 59
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 488
Stack 647
Top Tube (effective) 474 534 509 491 452 599 670 693 565 596 651 682
Top Tube (actual) 438 466 508 650 495 587 640 584 698 667 573 659
Seat Tube C-T 480 555 644 567 556 645 634 676 707 754 678 708
Seat Tube C-C 529 504 431 524 535 489 610 569 569 583 674 666
Head Angle 72 70 79 78 75 58 60 80 81 59 87 82
Seat Angle 75 66 89 71 76 81 76 82 72 66 59 66
Head Tube 99 153 166 165 166 214 176 198 255 275 212 230
Chainstay 404
Wheelbase 1126
Front Centre 537
Standover 780
BB Drop 71
BB Height 257
BB Type BSA BSA BSA BSA BSA BSA BSA BSA BSA BSA BSA BSA
Fork Rake / Offset 40 41 36 39 45 51 41 51 49 51 51 52
Fork Length (A2C) 355
Seatpost Diameter 36 29 31 29 32 31 30 27 25 30 32 26
Wheel Size 700c
Tyre Max Width 26
Seat Clamp 36
Bike Weight 8
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
