Geometry

  520 540
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 329 374
Stack 540 604
Top Tube (effective) 535 630
Seat Tube C-T 536 549
Seat Tube C-C 484 545
Head Angle 86 85
Seat Angle 62 65
Head Tube 130 151
Chainstay 448 425
Front Centre 607 485
BB Drop 60 60
BB Type PF30 PF30
Trail 37 44
Fork Length (A2C) 377 344
Tyre Max Width 28mm 28mm
Data Source Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

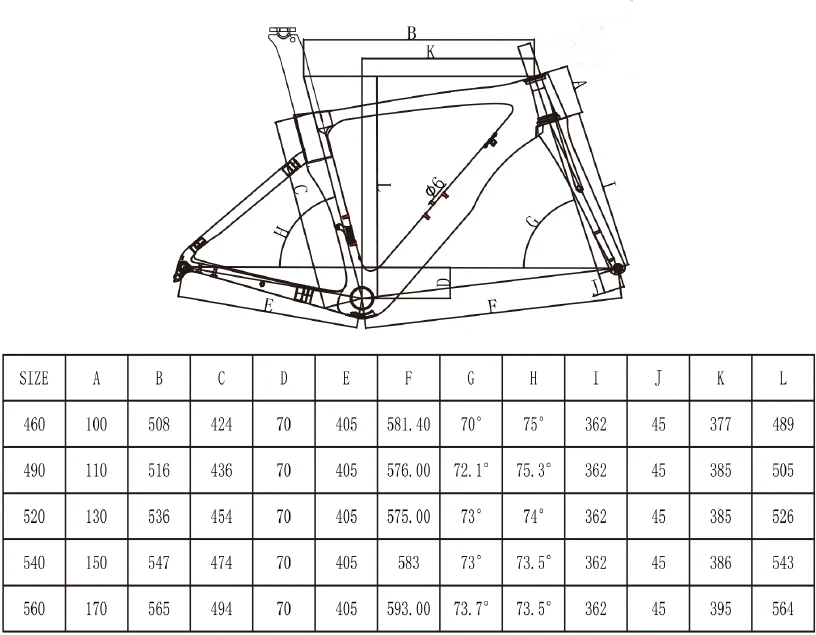

Image showing geometry measurements
