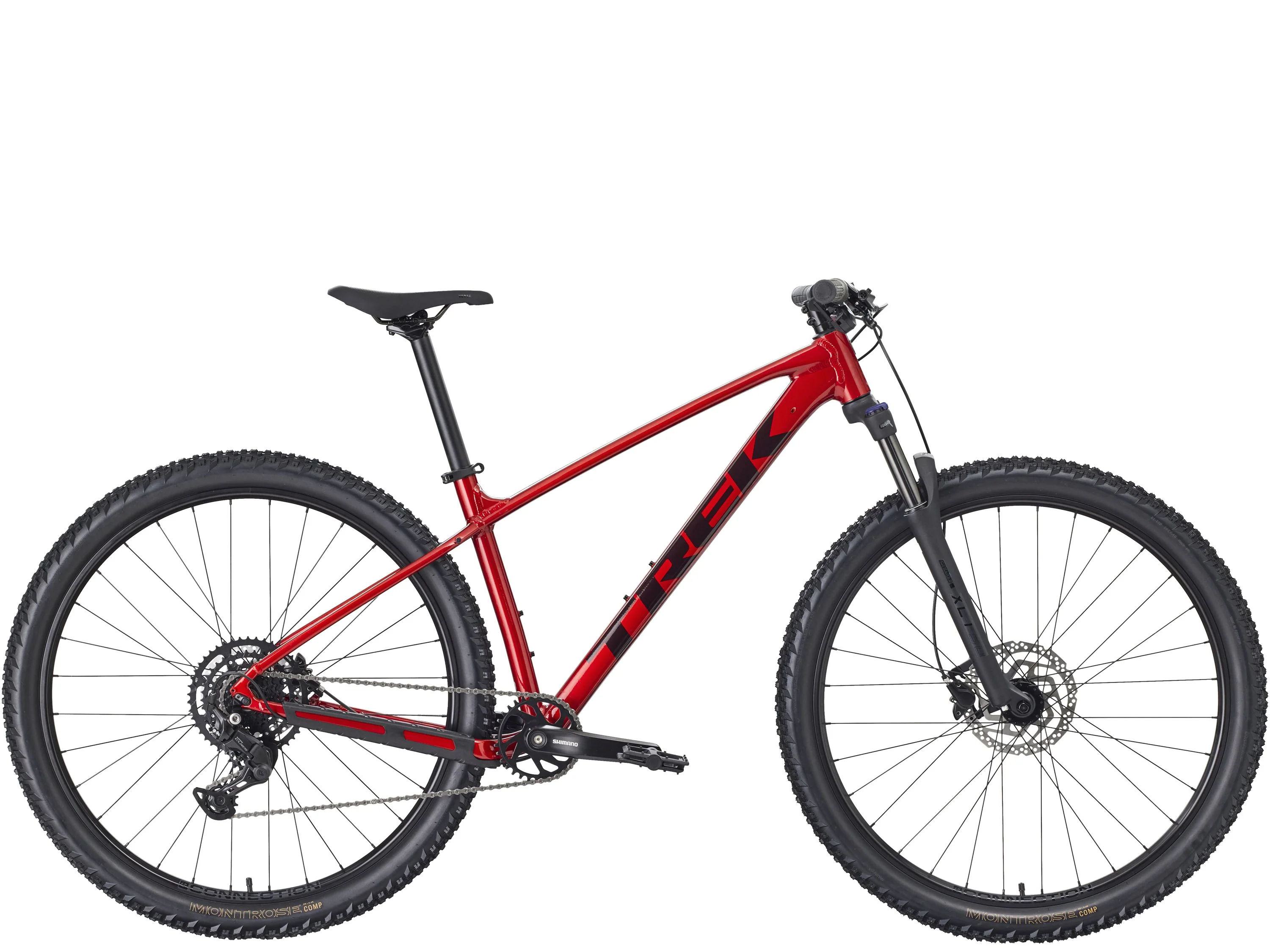

TREK Marlin 5 Gen 3 2025


c

Geometry

  S M ML L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 481 414 487 414 570
Stack 670 632 545 599 573
Top Tube (effective) 532 656 634 634 573
Seat Tube C-T 360
Head Angle 75 68 64 75 67
Seat Angle 73 72 73 72 70
Head Tube 109 103 127 107 147
Chainstay 423 418 400 453 486
Wheelbase 962 1374 1022 1203 1474
Standover 590 640 680 794 720
BB Drop 38 50 50 50 57
BB Height 309 341 316 253 358
Wheel Size 28
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
