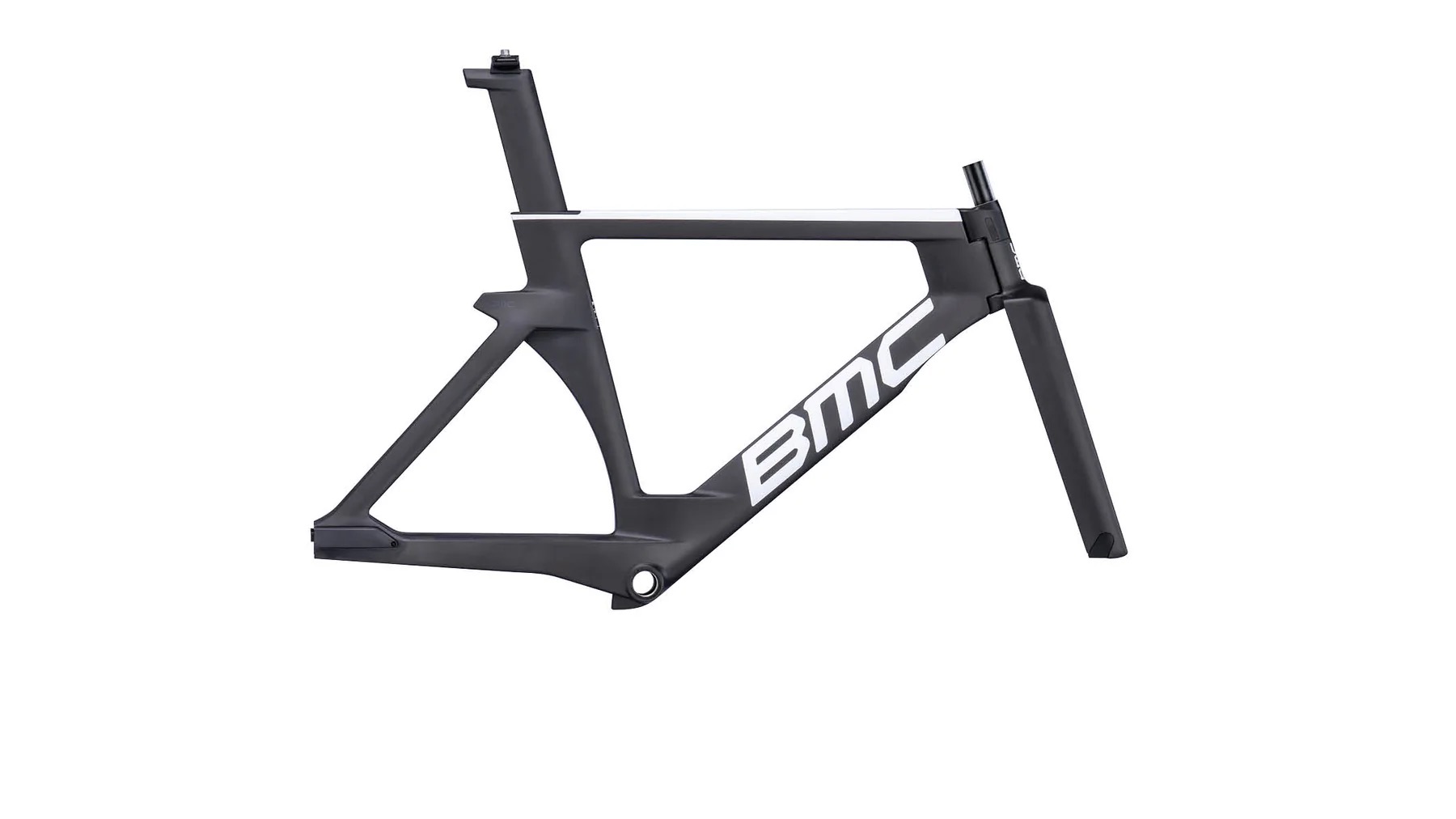

BMC Trackmachine 01 2024


c

Geometry

  S M L
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 420 498 494
Stack 422 386 626
Top Tube (effective) 473 482 562
Seat Tube C-T 559 510 545
Seat Tube C-C 555 554 649
Head Angle 61 62 63
Seat Angle 68 79 82
Head Tube 44 62 150
Chainstay 375 - 444 375 - 444 375 - 444
Wheelbase 972 - 1042 1008 - 1078 1019 - 1089
Front Centre 648 598 563
Standover 771 850 713
BB Drop 71 54 54
Fork Rake / Offset 47 36 51
Trail 73 70 55
Fork Length (A2C) 423 359 383
Seatpost Length 441 427 379
Seatpost Offset -18 - 0 - 18 - 36 -18 - 0 - 18 - 36 -18 - 0 - 18 - 36
Rider Height <173 170-185 >183
Data Source Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
