Geometry

  43 46.5 50
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 298 326 438
Stack 410 612 626
Top Tube (effective) 459 532 534
Seat Tube C-C 384 396 414
Head Angle 69 61 65
Seat Angle 82 61 75
Head Tube 101 128 127
Chainstay 350 369 361
BB Drop 69 81 86
BB Type BSA BSA BSA
Fork Rake / Offset 38 44 46
Fork Length (A2C) 320 364 372
Wheel Size 700C 700C 700C
Tyre Max Width 32C 32C 32C
Data Source Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

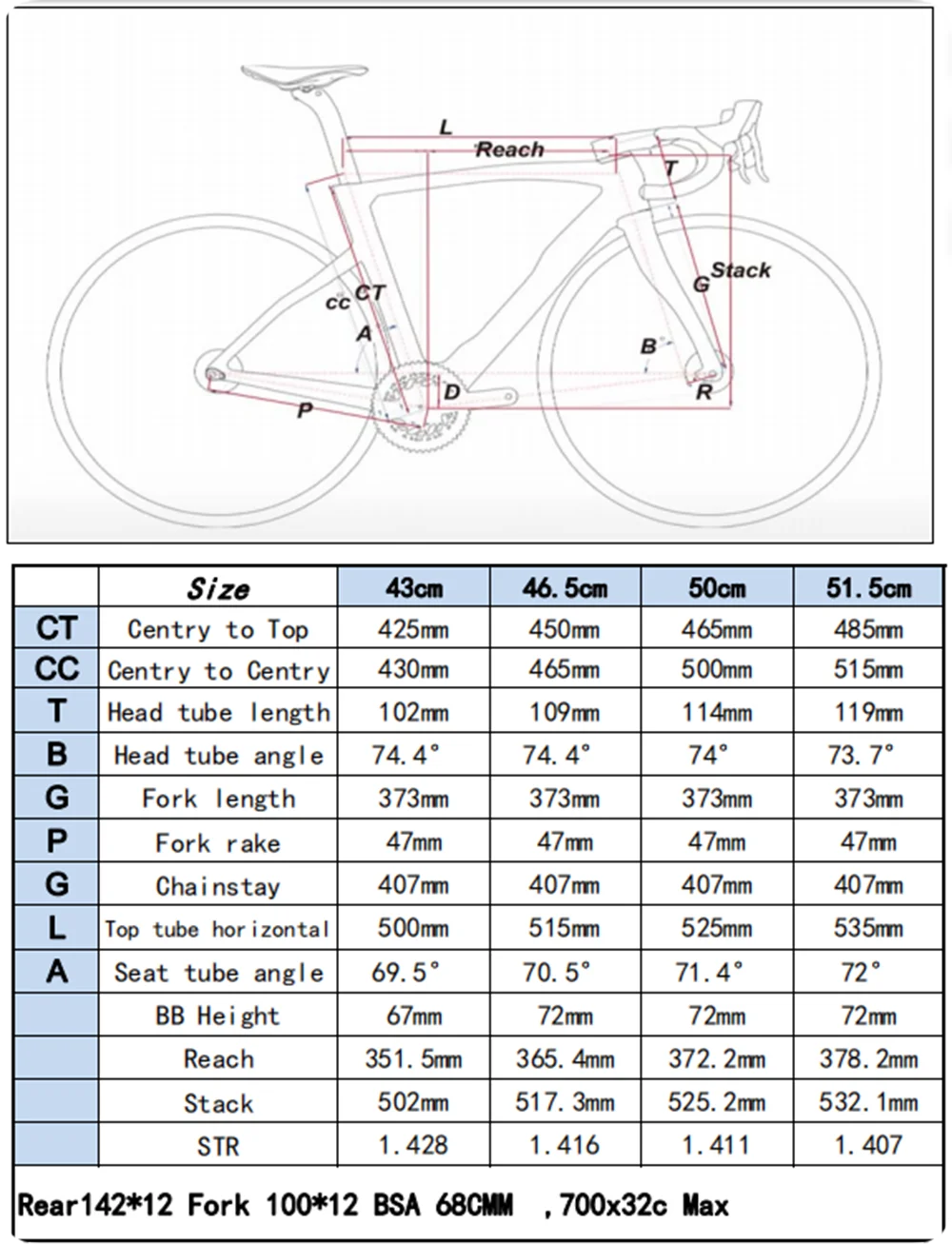

Image showing geometry measurements
