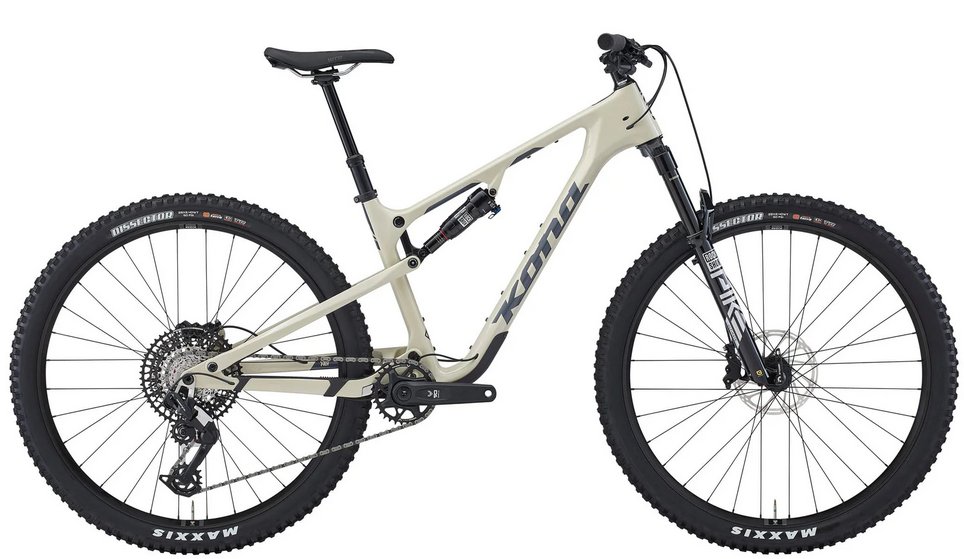

Kona Hei Hei CR v10 2026


c

Geometry

  S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 487 420 477 434
Stack 519 649 565 674
Top Tube (effective) 648 635 628 696
Seat Tube C-T 334 420 502 571
Head Angle 75 66 78 60
Seat Angle 64 70 65 78
Head Tube 89 122 106 130
Chainstay 479 482 460 490
Wheelbase 1379 1219 1383 1224
Front Centre 791 845 857 734
Standover 732 830 615 675
BB Drop 27 27 35 25
BB Height 395 332 352 323
Fork Rake / Offset 45 39 51 52
Fork Length (A2C) 435 637 553 616
Axle Spacing 164 170 135 150
Wheel Size 29" 29" 29" 29"
Data Source Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
