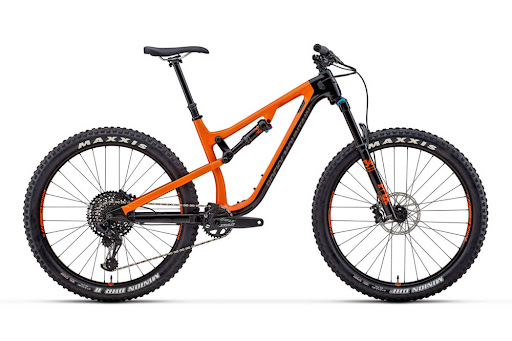

Rocky Mountain Pipeline 27.5+ 2018
Prove Humanity: Please click here to start.
You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.
Geometry
| S Steep | S Neutral | S Slack | M Steep | M Neutral | M Slack | L Steep | L Neutral | L Slack | XL Steep | XL Neutral | XL Slack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Add to Compare | ||||||||||||
| Reach | 476 | 332 | 342 | 482 | 477 | 402 | 417 | 400 | 366 | 498 | 450 | 519 |
| Stack | 675 | 531 | 611 | 657 | 508 | 514 | 573 | 721 | 531 | 567 | 643 | 710 |
| Top Tube (effective) | 677 | 511 | 665 | 601 | 512 | 687 | 698 | 607 | 510 | 778 | 747 | 696 |
| Seat Tube C-T | 333 | 391 | 442 | 507 | 434 | 389 | 470 | 411 | 479 | 514 | 490 | 419 |
| Head Angle | 75 | 69 | 56 | 55 | 72 | 66 | 76 | 68 | 65 | 76 | 57 | 64 |
| Seat Angle | 65 | 65 | 72 | 89 | 61 | 67 | 85 | 82 | 87 | 84 | 65 | 64 |
| Head Tube | 97 | 93 | 106 | 111 | 106 | 105 | 128 | 126 | 94 | 126 | 139 | 119 |
| Chainstay | 519 | 493 | 349 | 380 | 459 | 516 | 498 | 403 | 516 | 490 | 494 | 413 |
| Wheelbase | 1366 | 1318 | 1256 | 1363 | 978 | 1263 | 1178 | 1386 | 1137 | 1044 | 1175 | 1265 |
| Standover | 957 | 795 | 903 | 745 | 749 | 912 | 875 | 964 | 903 | 680 | 750 | 769 |
| BB Drop | 20 | 26 | 39 | 17 | 29 | 31 | 20 | 30 | 32 | 21 | 31 | 32 |
| Wheel Size | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
| Data Source | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer |
Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
