XM Carbon Speed Aero Race (TBD) 2026


c

Geometry

  XS S M L XL XXL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 359 347 385 470 441 352
Stack 417 587 592 487 657 537
Top Tube (effective) 600 567 456 486 667 626
Seat Tube C-T 394 514 555 589 658 535
Head Angle 68 83 72 73 61 59
Seat Angle 60 79 65 71 61 59
Head Tube 122 121. 9 154 160. 3 214 217
Chainstay 487 377 348 344 427 432
Wheelbase 1098 943 1115 1102 1171 865
Front Centre 580 505 661 511 530 599
BB Drop 64 56 70 67 74 67
Fork Rake / Offset 42 42 42 36 52 37
Trail 78 53 71 56 45 43
Fork Length (A2C) 351 342 371 382 430 357
Data Source None None None None None None

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

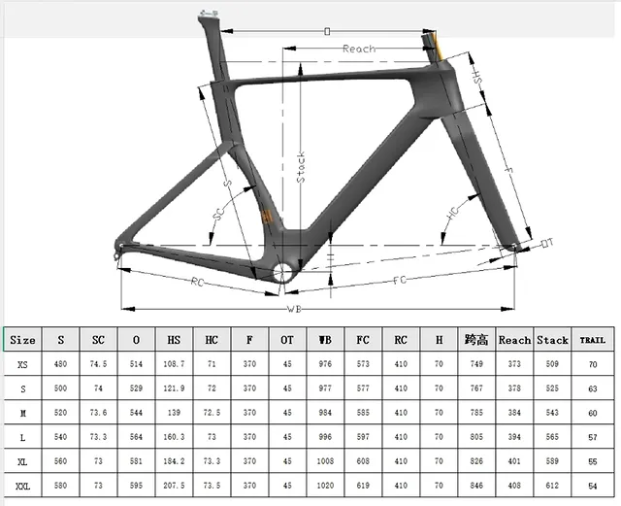

Image showing geometry measurements
